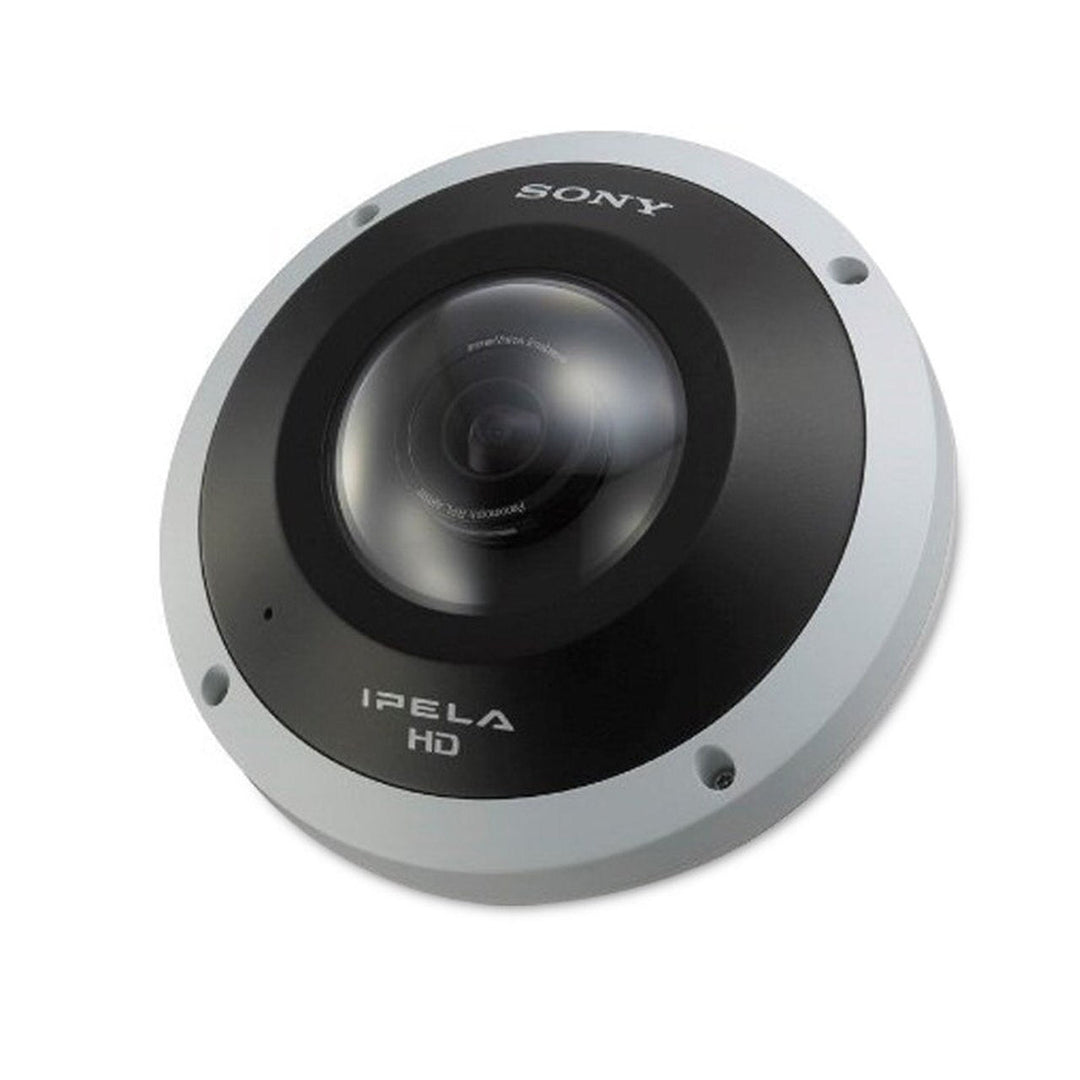

IN STOCK! Sony SNC-HM662 360°, 5 Megapixel IP camera, micro SD card slot (up to 32GB)
✔ Authenticity Guaranteed — Verified Designer Goods
✔ 100% Money-Back Guarantee on Eligible Items
✔ Prices Displayed in Your Local Currency
✔ Final Price = No Surprise Import Fees
✔ Complimentary Insured Worldwide Shipping on Qualifying Orders
✔ Select Collector & Specialty Pieces May Require Secured Delivery Handling
✔ 100% Money-Back Guarantee on Eligible Items
✔ Prices Displayed in Your Local Currency
✔ Final Price = No Surprise Import Fees
✔ Complimentary Insured Worldwide Shipping on Qualifying Orders
✔ Select Collector & Specialty Pieces May Require Secured Delivery Handling
Our authentication process ensures every item meets strict luxury verification standards.
Learn more
Complimentary worldwide shipping on qualifying orders
Overview
Capture an uninterrupted 360-degree view with clear detail from the 5 megapixels CMOS sensor
The SNC-HM662 IP network camera provides an uninterrupted 360-degree hemispheric field of view. It’s an ideal ‘overview camera’ solution for keeping a watchful eye over a wide range of indoor and outdoor environments – from lobbies, waiting rooms and retail spaces to car parks, campuses and commercial buildings.
While ordinary fisheye lenses are commonly used for 360-degree wide-angle coverage, image quality is seriously degraded at the edge of the picture. The SNC-HM662 takes a radically different approach, using a unique panomorph lens by ImmerVision to capture a true hemispherical view with no blind spots. Video footage from the 5 megapixels sensor is crisp and clear right to the edge of the picture, with a frame-rate up to 13fps.
The resulting 360-degree image can be automatically ‘dewarped’ to give a clear, undistorted view via Sony’s web browser client or a VMS (video management software) client application. Electronic pan/tilt/zoom (ePTZ) allows quick navigation to any part of the camera’s field of view for a closer look.
The client applications offer a variety of view modes. These include the camera’s original 360-degree hemispheric view, as well as multiple simultaneous views produced from the same hemispheric image including a 180-degree panoramic view, quad view and 9-way split-screen.
Even when one part of the scene is being reviewed in close-up on a client, the camera continues to stream the whole image to the recording platform. After recording, footage of the whole area can be re-examined. The operator has the same flexibility in play-back as in live-view, to zoom in on any part of the 360-degree scene for a closer look.
Further refinements offered by the SNC-HM662 include two-way audio with a built-in microphone. Power over Ethernet (PoE) helps with simpler installation, while edge storage allows ‘no network’ recording to a removable memory card. Capable of operating over a wide -30C to +50C temperature range, the SNC-HM662 is also IP66 & IK10 rated for water and impact resistance, making it particularly suitable for use in outdoor applications.
While ordinary fisheye lenses are commonly used for 360-degree wide-angle coverage, image quality is seriously degraded at the edge of the picture. The SNC-HM662 takes a radically different approach, using a unique panomorph lens by ImmerVision to capture a true hemispherical view with no blind spots. Video footage from the 5 megapixels sensor is crisp and clear right to the edge of the picture, with a frame-rate up to 13fps.
The resulting 360-degree image can be automatically ‘dewarped’ to give a clear, undistorted view via Sony’s web browser client or a VMS (video management software) client application. Electronic pan/tilt/zoom (ePTZ) allows quick navigation to any part of the camera’s field of view for a closer look.
The client applications offer a variety of view modes. These include the camera’s original 360-degree hemispheric view, as well as multiple simultaneous views produced from the same hemispheric image including a 180-degree panoramic view, quad view and 9-way split-screen.
Even when one part of the scene is being reviewed in close-up on a client, the camera continues to stream the whole image to the recording platform. After recording, footage of the whole area can be re-examined. The operator has the same flexibility in play-back as in live-view, to zoom in on any part of the 360-degree scene for a closer look.
Further refinements offered by the SNC-HM662 include two-way audio with a built-in microphone. Power over Ethernet (PoE) helps with simpler installation, while edge storage allows ‘no network’ recording to a removable memory card. Capable of operating over a wide -30C to +50C temperature range, the SNC-HM662 is also IP66 & IK10 rated for water and impact resistance, making it particularly suitable for use in outdoor applications.
Features
High resolution 5 megapixels images with 360-degree hemispheric view
The panomorph lens from ImmerVision captures a high-resolution 360-degree hemispherical real-time view with no blind spots. With a resolution of 5 megapixels, video images remain crisp and clear right to the edge of the picture.
Advanced dewarping technology for immersive monitoring
Advanced dewarping technology corrects for distortion of hemispheric images, producing rectangular images with video management software (VMS). Image quality is far higher than using conventional fisheye lenses: this avoids image degradation typically caused by camera processing limitations during the dewarping process.
Solid PTZ
Navigate rapidly to any part of the scene with digital pan, tilt, and zoom (ePTZ) of the 5 megapixels image for a closer view of what’s happening, while recording of the whole 360-degree scene continues uninterrupted.
A variety of view modes via client applications
Alongside the camera’s original 360-degree hemispheric view, select from multiple simultaneous images including 180-degree panoramic view, quad view and 9-way split-screen that includes the original camera view surrounded by 8 other regional images.
Better pictures, day or night
True Day/Night function automatically switches the camera between Day (colour) and Night (B/W) modes, depending on light levels. This increases sensitivity and allows use of IR illumination thanks to the IR corrected lens.
Recording quality to suit your network
Select CBR (constant bitrate), VBR (variable bitrate) or VBR-with-cap compression modes for optimised recording quality depending on IP network conditions, plus G.711/AAC (32 kHz, 44.1 kHz) audio codecs for high-quality recording.
Automatic edge recording to memory card
Edge Storage allows recording of video and audio directly to an optional micro SD card for later analysis.
IK10-rated anti-vandal resistance
Protects the camera from unwanted tampering and destructive behaviour.
IP66-rated water-resistant and dust-tight
The camera is ideal for indoor use as well as outdoor locations where dust and water ingress may be encountered.
Wide operating temperature range
Ideal for use in summer heat or freezing conditions, the camera can operate reliably over a wide -30C to +50C temperature range.
Built-in microphone and audio output
Capture crisp, clear audio to hear exactly what’s happening in the camera’s vicinity. An optional speaker can also be added via the camera’s audio output for playback of recorded announcements or two-way communication with an operator.
Multiple video and audio codecs
For easy integration with a range of VMS solutions the SNC-HM662 supports H.264 (High/Main/Baseline Profile) /JPEG video codecs and G.711/AAC (32 kHz, 44.1 kHz) audio codecs. This provides compatibility and choice to suit many applications.
Easy IP network configuration
Configuration of network settings is made quick and simple using the supplied SNC Easy IP Setup Guide application.
ONVIF (Open Network Video Interface Forum) compliance
Support for ONVIF Profile-S simplifies integration with a wide range of VMS platforms and hardware, providing video streaming and camera control. ONVIF (Open Network Video Interface Forum) defines a common protocol for the exchange of information between network video devices, including automatic device discovery and video streaming.
Camera
Image Sensor
1/2.5-type progressive scan CMOS sensor
Number of Effective Pixels
Approx. 5 Megapixels
Minimum Illumination (50 IRE)
Color: 0.7 lx (F2.0, AGC ON, 1/30 s, 10 fps)
B/W: 0.3 lx (F2.0, AGC On, 1/30 s, 10 fps)
B/W: 0.3 lx (F2.0, AGC On, 1/30 s, 10 fps)
Minimum Illumination (30 IRE)
Color: 0.4 lx (F2.0, AGC On, 1/30 s, 10 fps)
B/W: 0.1 lx (F2.0, AGC On, 1/30 s, 10 fps)
B/W: 0.1 lx (F2.0, AGC On, 1/30 s, 10 fps)
S/N Ratio (Gain 0 dB)
More than 60 dB
Gain
Auto
Shutter Speed
1/5 s to 1/32,000 s
Exposure Control
Exposure compensation, Shutter speed
White Balance
ATW, Manual
Lens
Fixed lens
Zoom Ratio
Digital zoom 12x
Total zoom 12x
Total zoom 12x
Horizontal Viewing Angle
182°
Vertical Viewing Angle
182°
Focal Length
f = 0.98 mm to 1.12 mm
F-Number
F2.0
Minimum Object Distance
500 mm
Number of Preset Positions
20
Number of Tour Programs
1
Camera Features
Day/Night
True D/N
360°Hemispheric/180°Panoramic View Modes
Yes/Yes (total view modes: 11) *1
Auto-rotation Mode
Yes
e-Flip
Yes
Wide-D
Yes
Tone Correction
Global Tone Mapping
Privacy Masking (number)
5
Privacy Masking (shape)
Quadrangle formed by any four corner points
Privacy Masking (color/effect)
Opaque 1 colors (Black)
Edge Storage
Yes
Vandal Resistant
IK10
Ingress Protection
IP66
Superimpose Language
English
Menu Language
English, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai
Video
Resolution
2560 x 1920, 2048 x 1536, 1600 x 1200, 800 x 600, 640 x 480 (Fisheye mode: H.264, JPEG)
1920 x 1080, 1600 x 904, 1360 x 768, 1280 x 720, 640 x 360 (1080p mode: H.264, JPEG)
1920 x 1080, 1600 x 904, 1360 x 768, 1280 x 720, 640 x 360 (1080p mode: H.264, JPEG)
Compression Format
H.264 (High/Main/Baseline Profile), JPEG
Maximum Frame Rate
H.264: 10 fps (2560 x 1920)/30 fps (1920 x 1080)
JPEG: 13 fps (2560 x 1920)/30 fps (1920 x 1080)
JPEG: 13 fps (2560 x 1920)/30 fps (1920 x 1080)
Bitrate Control Mode
CBR/VBR (selectable)
Range of Bit Rate Setting
20 Kbps to 16 Mbps
Image Cropping
1920 x 1080
Solid PTZ
Yes
Adaptive Rate Control
H.264
Bandwidth Control
JPEG
Multi streaming Capability
Yes (3)
Number of Clients
10
Intelligent Video/Audio Analytics
Intelligent Motion Detection
Yes
Tamper Alarm
Yes
Audio
Compression Format
G.711/AAC (32 kHz, 44.1 kHz)
System Requirements
Operating System
Windows XP (32 bit) Professional Edition
Windows Vista (32 bit) Ultimate, Business Edition
Windows 7 (32/64 bit) Ultimate, Professional Edition
Windows 8 Pro (32/64 bit)
Windows Vista (32 bit) Ultimate, Business Edition
Windows 7 (32/64 bit) Ultimate, Professional Edition
Windows 8 Pro (32/64 bit)
Processor
Intel Core7 2.8 GHz or higher
Memory
2 GB or more
Web Browser
Microsoft Internet Explorer Ver. 8.0, Ver. 9.0, Ver 10.0 (32 bit)
SNC toolbox
Yes
Network
Protocols
IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, SMTP, IPv6, HTTPS, SNMP (v1, v2c, v3), SSL
Number of IP Address/Mac ADDRESS
1
QoS
DSCP
Multicast Streaming Support
Yes
ONVIF Conformance
Profile S
Authentication
IEEE802.1X
Interface
Microphone Input
Built-in Microphone/External MIC-IN
Line Input
Mini jack (monaural)
Line Output
Mini jack (monaural) Maxium output level: 1Vrms
Network Port
10BASE-T/100BASE-TX (RJ-45)
Alarm Input (Sensor Input)
x1, make contact, break contact
Alarm Output
x1, 24V DC, 0.5A (electrical switch outputs. Isolated by photo coupler)
Card Slots
micro SD x1
Confirmed SD Card Type
microSDHC (no support for microSDXC)
General
Power Requirements
IEEE 802.3af compliant (PoE system), DC 12V±10%
Power Consumption
6.0 W max.
Operating Temperature
-30 °C to +50 °C
-22°F to +122°F
-22°F to +122°F
Cold Start Temperature
-20 °C to +50 °C
-4°F to +122°F
-4°F to +122°F
Storage Temperature
-25 °C to + 60 °C
-13 °F to + 140 °F
-13 °F to + 140 °F
Operating Humidity
20 % to 90 %
Storage Humidity
20 % to 95 %
Dimensions *2
Φ145 mm x 54 mm (without mounting plate)
Φ5 3/4 inches x 2 1/4 inches (without mounting plate)
Φ147 mm x 70 mm (with mounting plate)
Φ5 7/8 inches x 2 7/8 inches (with mounting plate)
Φ5 3/4 inches x 2 1/4 inches (without mounting plate)
Φ147 mm x 70 mm (with mounting plate)
Φ5 7/8 inches x 2 7/8 inches (with mounting plate)
Mass
Approx. 640 g (without mounting plate)
Approx. 1 lb 7 oz (without mounting plate)
Approx. 716 g (with mounting plate)
Approx. 1 lb 9 oz (with mounting plate)
Approx. 1 lb 7 oz (without mounting plate)
Approx. 716 g (with mounting plate)
Approx. 1 lb 9 oz (with mounting plate)
External Material
Clear Dome cover: PC
Top cover: AL Die-cast
Top cover ring: PC
Camera base: AL Die-cast
Mounting plate: AL Die-cast
Top cover: AL Die-cast
Top cover ring: PC
Camera base: AL Die-cast
Mounting plate: AL Die-cast
External Color
Top cover: Black
Top cover ring: White
Camera base: White
Mounting plate: White
Top cover ring: White
Camera base: White
Mounting plate: White
Fire Retardant
UL94HB
Safety Regulations
JATE Technical standard (LAN)
UL2044, IEC60950-1（CB)
VCCI Class B, FCC Class B, IC Class B,
Emission: EN55022 (Class B) + EN50130-4
Immunity: EN55022 (Class B) + EN55024,
Emission: AS/NZS CISPR22 (Class B)
KCC
EAC (GOST-R)
UL2044, IEC60950-1（CB)
VCCI Class B, FCC Class B, IC Class B,
Emission: EN55022 (Class B) + EN50130-4
Immunity: EN55022 (Class B) + EN55024,
Emission: AS/NZS CISPR22 (Class B)
KCC
EAC (GOST-R)
Supplied Accessories
Mounting plate (1)
I/O cable (1)
Alignment sticker for camera base (1)
Alignment sticker for mounting plate (1)
Screw driver (1)
Desiccant bag (1)
Double-sided tape (1)
Rubber seal plug (1)
Rubber washer (1)
Screw (for mounting plate) (1)
Installation Manual (1)
Warranty card (1)
Safety regulations for network camera (1)
CD-ROM (supplied program) (1)
I/O cable (1)
Alignment sticker for camera base (1)
Alignment sticker for mounting plate (1)
Screw driver (1)
Desiccant bag (1)
Double-sided tape (1)
Rubber seal plug (1)
Rubber washer (1)
Screw (for mounting plate) (1)
Installation Manual (1)
Warranty card (1)
Safety regulations for network camera (1)
CD-ROM (supplied program) (1)
Optional Accessories
UNI-MDPHM (Mount Dome Pendant shroud for Hemispheric Mini dome)
Notes
*1
11 view modes are available with an ActiveX viewer on Internet Explorer.
*2
The values for dimensions are approximate.
- Low stock - 2 items left
Shop with Confidence
- ✔ Authenticity Guaranteed — Verified Designer Goods
- ✔ Sourced from Authorized European/U.S. Luxury Distributors
- ✔ Secure Checkout — SSL Encrypted Payments
- ✔ Fast Global Delivery — 3–11 Business Days
- ✔ Easy Returns on Eligible Items
- ✔ 100% Money-Back Guarantee — Full Refund if Not Satisfied
Verified Trust Rating: 91/100
Trusted by discerning buyers worldwide — secure, verified luxury sourcing
AUTHENTICITY GUARANTEED
Reserved for you — complete your purchase to secure this piece.
Authorized Designer Inventory
Secure & Encrypted Checkout
Tracked & Insured Delivery
OFFICIALLY AUTHORIZED RESELLER
Discover Officially Authorized Authentic Items at STORE7994.com - Certificates Available on Request!
Independently verified for store quality and customer safety.
Trust score: 91/100
All designer items offered by STORE 7994 are sourced from trusted luxury distributors and verified through independent authentication services.
Learn how STORE 7994 authenticates luxury items
Guaranteed Authentic — Includes Brand Documentation & Third-Party Verification Options.
Shipping information
- Free Shipping* on all orders over $300 USD to most countries* Estimated delivery: 2-5 business days Mon-Sat to U.S., CA, EU etc.
- Tracking available: DHL Express
- Store 7994 Shipping policy
- Global delivery in 3–9 business days (location dependent).
- Free Worldwide Shipping $300+. International duties & VAT are calculated by destination country and may be collected upon delivery. UK orders are subject to 20% import VAT upon delivery.
Returns & Refunds
We want you to shop with confidence at STORE 7994. If your purchase does not meet expectations, eligible items may be returned under the conditions below.
Return Eligibility
Items must be unused, unworn, and in original condition with all tags, packaging, and accessories included. Items showing any signs of wear or damage will not be accepted.
Return Window
Return requests must be made within 14 days of delivery.
Return Shipping
Customers are responsible for return shipping costs unless the item is defective, damaged, or incorrect.
Luxury Items
Items valued over $1,000 may be subject to a 7% restocking fee upon approved return.
Non-Returnable Items
For hygiene and product integrity reasons, the following items are final sale once opened or used:
• Underwear
• Fragrances
• Any worn or used items
Made-to-Order Items
Custom-designed products, including STORE 7994 hoodies, are made exclusively for each customer and are final sale. These items are not eligible for return or exchange unless defective or incorrect.
If you receive a defective or incorrect item, please contact us and we will make it right.
International Shipping & Duties
Many of our products ship directly from trusted international partners. Any applicable customs duties or import taxes are calculated at checkout and are non-refundable, even if the item is returned.
Returns & Associated Fees
All approved returns are subject to a $24 return processing fee. For international orders, duties, taxes, and return fees will be deducted from the original payment.
Shipping Policy
Complimentary shipping is offered on orders over $300. Orders below this threshold are subject to standard shipping rates at checkout.
Frequently paired with
-33%
Bond 9 Unisex Midtown Sutton Place 100Ml
$504.00
